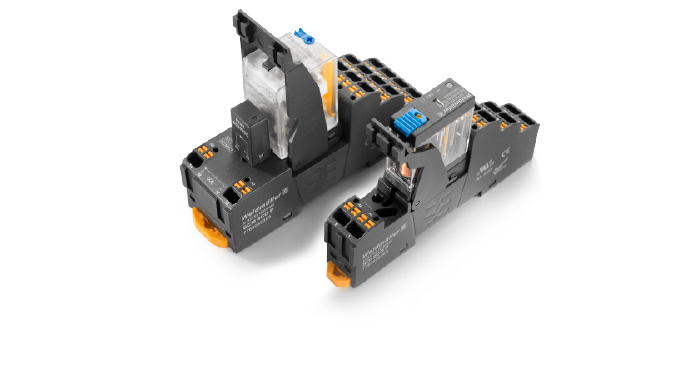

Thanks to their many different designs, our D-SERIES industrial relay modules have a wide range of features which make them suitable for various applications.

<> Your benefits <>

- Control voltages from 12 V to 230 V

- Switching currents from 5 A to 30 A

- 1 to 4 changeover contacts

- Variants with built-in LED or test button

- Tailor-made accessories from cross-connections to marker

- Available with PUSH IN or screw connection

2) DRI

The space-saving miniature industrial relay of the D-SERIES DRI with a width of only 16 mm has robust pins for fast and safe installation.

<> Features <>

- 1 CO contact (10 A) and 2 CO contacts (5 A)

- Variants with built-in LED, protective circuit, or test button

- Test button with coloured control voltage identification (AC coil: red, DC coil: blue)

- Suitable accessories from the cross-connections to the protective circuit

- Available with PUSH IN and screw connection

Chi tiết kỹ thuật, vui lòng xem link sau:

https://www.weidmuller.com/en/products/electronics/relay_modules_solid_state_relays/relay_modules/d_series_push_in.jsp

3) DRM

Our miniature industrial relays of the D-SERIES DRM are available from 25 mm width and are suitable for reliable contact multiplication in compact design.

<> Features <>

- 2 CO contacts (10 A) and 4 CO contacts (5 A)

- Variants with built-in LED, protective circuit, or test button

- Test button with colored control voltage identification (AC coil: red, DC coil: blue)

- Suitable accessories from the cross-connections to the protective circuit

- Available with PUSH IN and screw connection

Chi tiết kỹ thuật, vui lòng xem link sau: https://www.weidmuller.com/en/products/electronics/relay_modules_solid_state_relays/relay_modules/d_series_push_in.jsp

4) DRL

The miniature power relays of the D-SERIES DRL are available from 24 mm width. They have wear-resistant contact material for reliable switching of inductive loads.

<> Features <>

- 1 CO contact (16 A) and 2, 3, and 4 CO contacts (10 A)

- Wear-resistant AgCdO contact material

- Robust industrial pins

- Built-in status LED

- Suitable accessories from the socket to the protective circuit

5) DRW

Industrial power relays of our D-SERIES DRW have a width of 39 mm and are equipped with wear-resistant contact material and a large contact opening.

<> Features <>

- 2 and 3 CO contacts (16 A)

- Wear-resistant AgCdO contact material

- Robust industrial pins

- Built-in status LED and test button

- Suitable accessories from the socket to the protective circuit

6) DRH

The special industrial power relays of the D-SERIES DRH have a width of 39 mm and are suitable for switching high inductive DC loads. They have a built-in blow magnet and a large contact opening.
